Description
Product Description

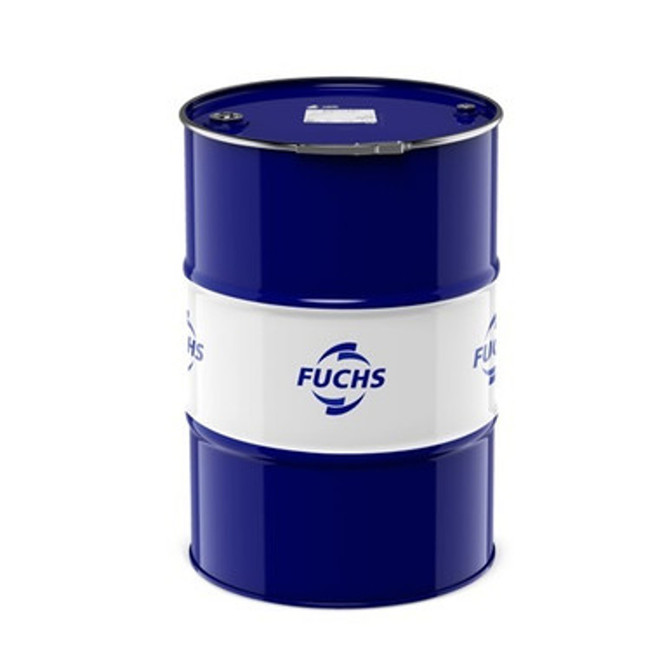

FUCHS TITAN UTTO TO-4 SAE 60 is a premium heavy-duty multifunctional transmission lubricant specifically designed for construction machinery, mining equipment, earthmoving equipment, crawler tractors, loaders, dozers, excavators, final drives, differentials, gearboxes, drive axles, and off-highway equipment requiring Caterpillar TO-4 SAE 60 fluids. Formulated with advanced base oil technology and specialised additive chemistry, it provides excellent friction control, superior wear protection, outstanding thermal and oxidation stability, effective foam control, and reliable performance under high-load and high-temperature operating conditions.
Features and Benefits
Excellent Caterpillar TO-4 Performance
Developed to meet the demanding requirements of Caterpillar TO-4 specifications, providing reliable lubrication for modern powertrain components.
Superior Wear Protection
Provides excellent protection for gears, bearings, transmissions, final drives, and hydraulic components operating under heavy loads and shock conditions.
Outstanding Friction Control
Maintains stable friction characteristics to ensure smooth operation of clutches, brakes, and transmission components.
Excellent Wet Brake Performance
Helps reduce brake chatter and improves brake control in equipment fitted with oil-immersed brakes.
High Temperature Stability
Provides improved thermal and oxidation resistance for extended service life in severe operating environments.
Excellent Foam Control
educes foam formation and maintains effective lubrication film strength during operation.
Applications
FUCHS TITAN UTTO TO-4 SAE 60 is recommended for:
- Heavy-duty construction machinery
- Mining equipment
- Earthmoving machinery
- Caterpillar-type powertrain systems
- Final drives
- Drive axles
- Differentials
- Gearboxes
- Powershift transmissions
- Wet brake systems
- Off-highway equipment operating in high ambient temperatures
It is especially suitable where the equipment manufacturer specifies:
- Caterpillar TO-4 SAE 60
- API GL-4 performance level
Specifications
- API GL-4
- Caterpillar TO-4
Approvals
No formal approvals are listed for SAE 60 grade.
Recommendations
- KOMATSU KES 07.868.1
Typical Physical Characteristics
| Property | Typical Value | Test Method |
|---|---|---|
| SAE Grade | 60 | SAE J306 |
| Appearance | Amber Fluid | Visual |
| Density @ 15°C | ~0.90 g/cm³ | DIN 51757 |
| Kinematic Viscosity @ 40°C | ~220 mm²/s | ASTM D445 |
| Kinematic Viscosity @ 100°C | ~24 mm²/s | ASTM D445 |
| Viscosity Index | ~100 | ASTM D2270 |
| Pour Point | ≤ -15°C | ASTM D97 |
| Flash Point | >220°C | ASTM D92 |
Typical values may vary within normal manufacturing tolerances.
Performance Characteristics
- Excellent transmission protection
- Superior gear and bearing wear control
- Stable friction performance
- Reduced wet brake chatter
- Excellent oxidation resistance
- High load-carrying capability
- Suitable for severe construction and mining operations
- Reliable performance at high operating temperatures
Compatibility
FUCHS TITAN UTTO TO-4 SAE 60 is compatible with many conventional TO-4 fluids. For maximum performance, avoid mixing with other lubricant types and perform a complete oil change when converting products.
Handling & Storage
Store in original sealed containers in a clean, dry environment. Protect from contamination by water, dirt, and other lubricants.
Health & Safety
Refer to the latest Safety Data Sheet (SDS) for detailed handling, storage, and disposal information.
