Description
Product Description

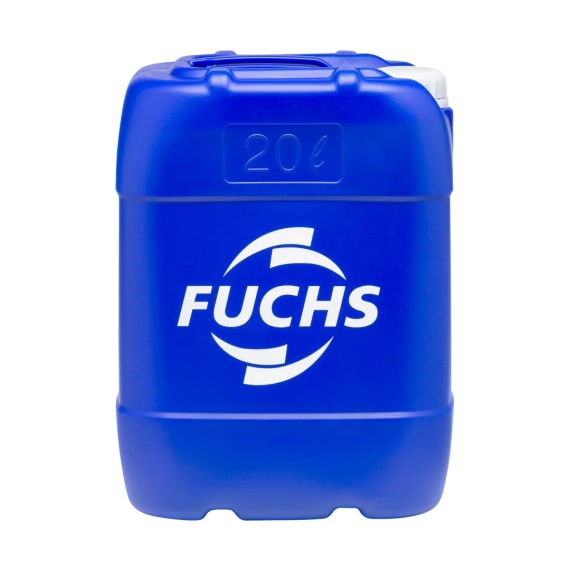

FUCHS TITAN SUPERGEAR HTB SAE 85W-140 is a heavy-duty hypoid gear oil specially formulated for severe-duty applications including mining equipment, heavy-duty trucks, construction machinery, industrial gearboxes, differentials, final drives, agricultural machinery, and high-load automotive gear systems. It contains a unique borate additive system designed to reduce thermal stress and provide reliable lubrication under extreme loads, shock loading, and high operating temperatures. The advanced formulation provides excellent extreme pressure protection, superior load-carrying capacity, strong lubricating film strength, and reliable component protection in demanding operating environments.
Features and Benefits
Exceptional Extreme Pressure (EP) Performance
Advanced additive technology provides excellent protection against scuffing, pitting, and wear in heavily loaded hypoid gears and industrial gear systems.
Severe Duty Protection
The unique borate additive system helps reduce thermal stress on equipment operating under very high loads, such as heavy-duty trucks, mining equipment, and industrial machinery.
Excellent Load Carrying Capacity
Maintains a strong lubricating film under shock loads, heavy torque conditions, and extreme operating environments.
Superior Gear and Bearing Protection
Protects gears, bearings, differentials, and final drives against premature wear, helping extend equipment service life.
Excellent Thermal Stability
Resists lubricant degradation during high-temperature operation and demanding service conditions.
Reliable Corrosion Protection
Provides protection against rust and corrosion of ferrous and non-ferrous components.
Applications
FUCHS TITAN SUPERGEAR HTB SAE 85W-140 is recommended for:
- Heavy-duty truck differentials
- Mining equipment
- Quarry equipment
- Construction machinery
- Industrial gearboxes
- Final drives
- Hypoid axle systems
- Agricultural machinery
- Forestry equipment
- Heavy transport vehicles
Suitable for applications requiring:
- API GL-5
- SAE 85W-140 heavy-duty hypoid gear oil
Typical Physical Characteristics
| Property | Typical Value | Test Method |
|---|---|---|
| SAE Grade | 85W-140 | SAE J306 |
| Product Type | Heavy Duty Hypoid Gear Oil | — |
| Base Oil Type | Mineral | — |
| Appearance | Amber Fluid | Visual |
| Density @ 15°C | Approx. 0.90 g/cm³ | ASTM D4052 |
| Kinematic Viscosity @ 40°C | Approx. 320 mm²/s | ASTM D445 |
| Kinematic Viscosity @ 100°C | Approx. 28–32 mm²/s | ASTM D445 |
| Viscosity Index | Approx. 95–110 | ASTM D2270 |
| Pour Point | Approx. -15 to -25°C | ASTM D97 |
| Flash Point | >200°C | ASTM D92 |
Typical values may vary within normal manufacturing tolerances.
Performance Characteristics
- Heavy-duty hypoid gear protection
- Excellent extreme pressure performance
- Superior load-carrying capability
- Strong lubricating film strength
- Excellent resistance to shock loading
- Reduced thermal stress on components
- Good oxidation stability
- Reliable corrosion protection
- Suitable for severe mining and industrial applications
Handling & Storage
Store in original sealed containers in a clean, dry environment. Protect from contamination by water, dust, and other lubricants.
Health & Safety
Refer to the latest Safety Data Sheet (SDS) for detailed information regarding handling, storage, transportation, and disposal
