Description
Product Description

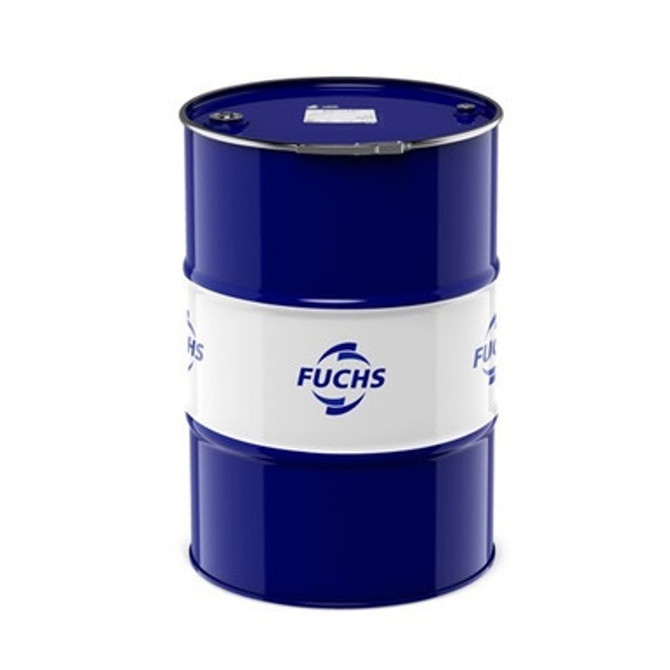

FUCHS TITAN ATF 4400 is an ultra-high-performance automatic transmission fluid (ATF) designed for modern Japanese passenger cars, light commercial vehicles, and automatic transmissions requiring JASO M315 Type 1A, DEXRON III-type, Toyota Type T-IV, Honda ATF-Z1, Nissan Matic, and other multi-vehicle ATF specifications. This advanced transmission fluid provides excellent anti-shudder performance, stable friction control, superior anti-wear protection, oxidation resistance, and smooth shifting performance throughout the service interval.
FUCHS TITAN ATF 4400 is formulated with high-quality base oils and advanced additive technology to meet the demanding requirements of modern step-type automatic transmissions with hydraulic torque converters. The specially developed friction-modifying system maintains consistent friction characteristics, helping prevent shift vibration, clutch shudder, and transmission wear while ensuring reliable operation under various driving conditions.
Performance Standards / Specifications
Product Type
- Automatic Transmission Fluid (ATF)
- Ultra High Performance Multi-Vehicle ATF
- Suitable for conventional automatic transmissions with torque converters
Specifications
- JASO M315 Type 1A
FUCHS Recommendations / Suitable For
- DEXRON III (H)
- AISIN-WARNER / Aisin AW-1 applications
- BMW MINI ATF specifications
- Chrysler ATF +3 / ATF +4
- Ford MERCON / MERCON V
- Honda ATF Z-1
- Hyundai SP III
- JWS 3309 / Toyota Type T-IV
- Mazda ATF M-III / M-V
- Mitsubishi ATF SP-II / SP-III
- Nissan Matic C / D / J
- Subaru ATF Oil / ATF HP
- Suzuki ATF 3309 / 3317
- Toyota Type D-II / T-II / T-III / T-IV
- VW G 052 990 / G 055 025
Typical Properties
| Property | Method | Typical Value |
|---|---|---|
| Product Type | — | Automatic Transmission Fluid |
| Appearance | Visual | Red Liquid |
| Density @ 15°C | DIN 51757 | 0.852 g/ml |
| Kinematic Viscosity @ 40°C | DIN 51562-1 | 37.3 mm²/s |
| Kinematic Viscosity @ 100°C | DIN 51562-1 | 7.3 mm²/s |
| Viscosity Index | DIN ISO 2909 | 165 |
| Pour Point | DIN ISO 3016 | -43°C |
| Flash Point | — | Approx. 200°C |
Key Benefits
- Excellent friction stability throughout the service interval
- Outstanding anti-shudder performance for smooth gear changes
- Excellent anti-wear protection for gears, bearings, valves, and clutches
- High oxidation and thermal stability
- Excellent low-temperature flow characteristics
- Helps maintain clean transmission components
- Reduces shift vibration and noise
- Provides reliable hydraulic performance
- Suitable for a wide range of Asian, European, and American vehicles
Applications
- Passenger car automatic transmissions
- Japanese automatic transmissions
- Aisin-Warner automatic gearboxes
- Light commercial vehicle transmissions
- Hydraulic torque converter transmissions
- Multi-brand vehicle fleets
- Automotive aftermarket servicing
Storage Information
Store in the original sealed container in a clean, dry area away from direct sunlight, heat, and moisture. Avoid contamination with other lubricants. Keep containers tightly closed when not in use.
Health & Safety
Avoid prolonged skin contact. Wear suitable protective gloves during handling. Wash hands after use. Refer to the latest Safety Data Sheet (SDS) before handling.
FUCHS TITAN ATF 4400 is not classified as dangerous goods for transport according to Australian transport regulations; however, avoid release into the environment
